FGH40T120SQDNL4
Manufacturer:
On Semiconductor
Mfr.Part #:
FGH40T120SQDNL4
Datasheet:
Description:

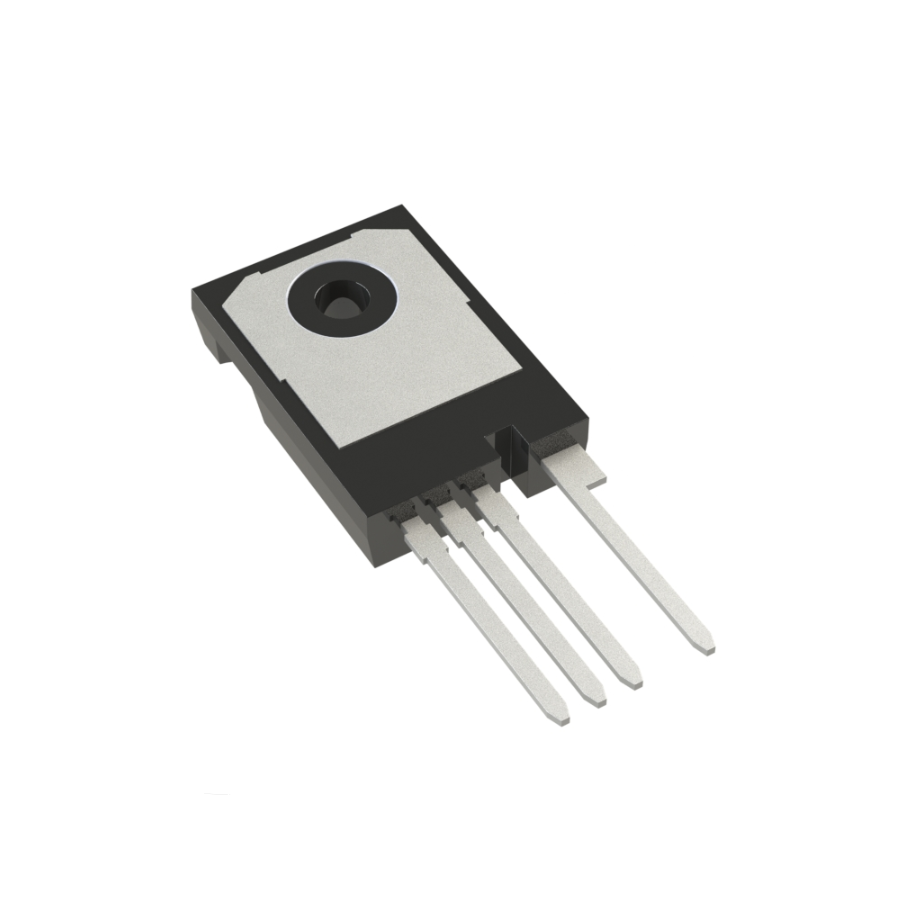

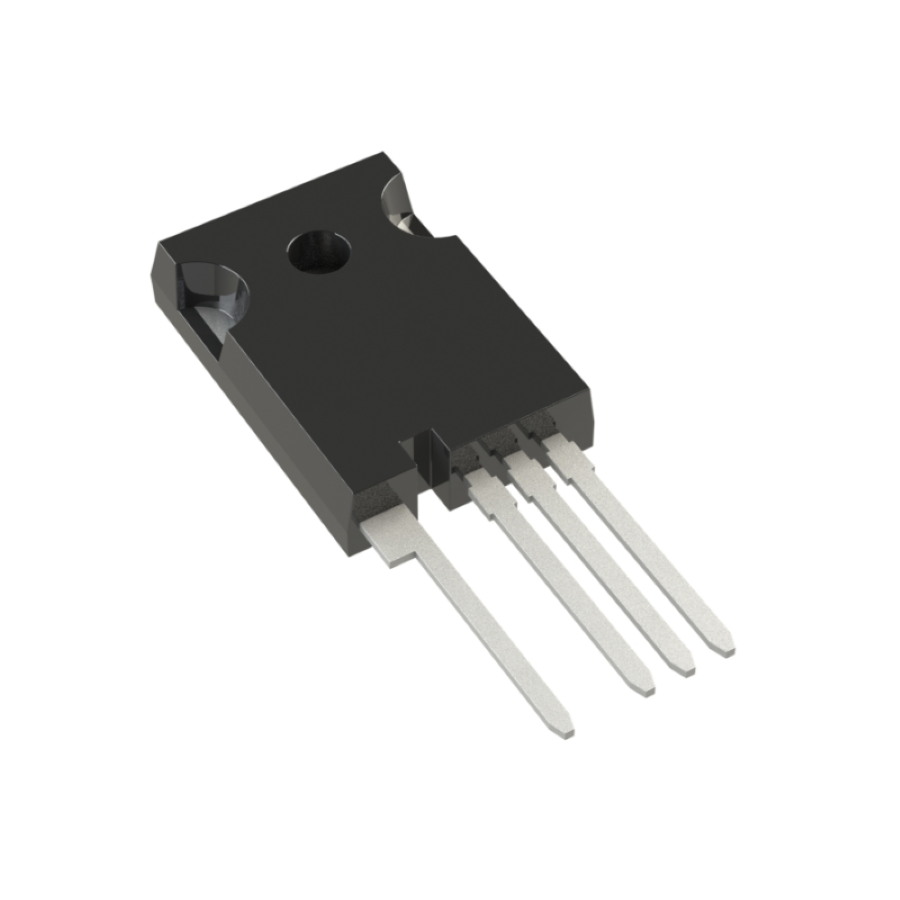

IGBTs TO-247-4 Through Hole Single 1.2 kV 454 W 160 A
| Parameter | Value |
|---|---|
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| RoHS | Compliant |
| Power Dissipation | 454 W |
| Max Collector Current | 160 A |
| Element Configuration | Single |
| Collector Emitter Voltage (VCEO) | 1.2 kV |
| Collector Emitter Saturation Voltage | 1.7 V |
| Maximum Gate Emitter Voltage | -20 V, 20 V |
Stock: 127
Distributors
pcbx
pcbxUnit Price$6.26293
Ext.Price$6.26293
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $6.26293 | $6.26293 |
| 10 | $5.50316 | $55.03160 |
| 25 | $4.83556 | $120.88900 |
| 50 | $4.24895 | $212.44750 |
| 100 | $3.73350 | $373.35000 |
| 300 | $3.28058 | $984.17400 |
| 500 | $2.88265 | $1441.32500 |
